Picture frame fittings, hanging systems

For gallery hanging and picture framing

68 Vittoria Street, Birmingham, B1 3PB, U.K.
Tel. No: 0121 236 7219
Fax No. 0121-236 3633
Email: sales@frankscragg.co.uk

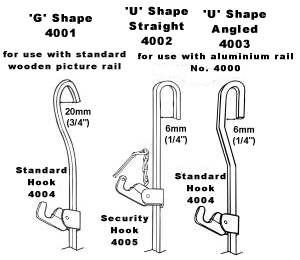

Rods and Hooks

A versatile system of rods and self-locking hooks. The G-shape rods are designed to fit over standard wooden picture rail. Alternatively, use the aluminium rail with either of the U-shape patterns - the angled version brings the rod closer to the wall.

Once in position the rods can easily be moved along the rail, and the hooks slide up and down the rods and lock into place. The security hook acts as a deterrent, as the picture cannot be lifted off the hook once the cotter pin is pushed through the hole at the end of the picture hook.



(1) Rail supplied in 2m (6'6")lengths.

(2)Standard lengths of Rods : 1.2m (4ft), 1.8m (6ft), 3.0m (10ft), or we can cut to your required size.

(3)Rods come in three finishes:  Zinc, Brass Plated or White powder coated with rail to match.

NEW DECO HANGING SYSTEM

In addition to our gallery Hanging System, we now offer a Security version. This consists of a zinc rail, supplied with concealed wall fixings.
There is a channel in the lower part of the rail along which slide 4mm diameter rods. These can only be inserted at the end of the rail, thus helping to prevent unauthorised removal. Pictures are hung on either our Standard Hooks (4004) or the Security version (4005) which slide up and down the rods as required.
