Security Fixings
SPRING LOCK SYSTEM
1. Side Fixing - No. 48
The brackets are screwed to the frame, one on each side, and are then placed on screws in the wall with the spring clip in place (A). Once the picture is positioned satisfactorily, the clip is
pushed home (B). The clip can only be removed using the special release tool (49). In sets of two spring clips and two brackets with screws - use one set per picture.

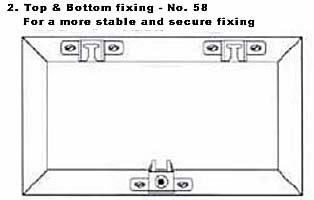

2. Top and Bottom fixing - No. 58
Firstly, screw two T-slotted brackets to the top of the frame to hang on screws in the wall. One bracket and spring clip is then fitted to the bottom in the same way as for the side
fixing method. In sets of one spring slip and bracket and screws plus two
T-brackets - use one set per picture.
T-SCREW SYSTEMFOR WOODEN FRAMES - 78

The brackets are screwed to each side of the moulding, and T-headed screws in the wall are turned in the slots, using the spanner. In sets of two T-screws and plugs, two brackets and fixing screws - use one set per picture.
T-SCREW SYSTEM
FOR ALUMINIUM FRAMES - 78A
Double Plate Profiles.
Screw two top plates into the wall which will slot into the top of the frame. One T-screw
is used for the
bottom of the frame. In sets of 2 top plates plus one T-screw and plug - use one set
per picture.
Polished brass firescreen feet and handles. Also available in chrome or black.
